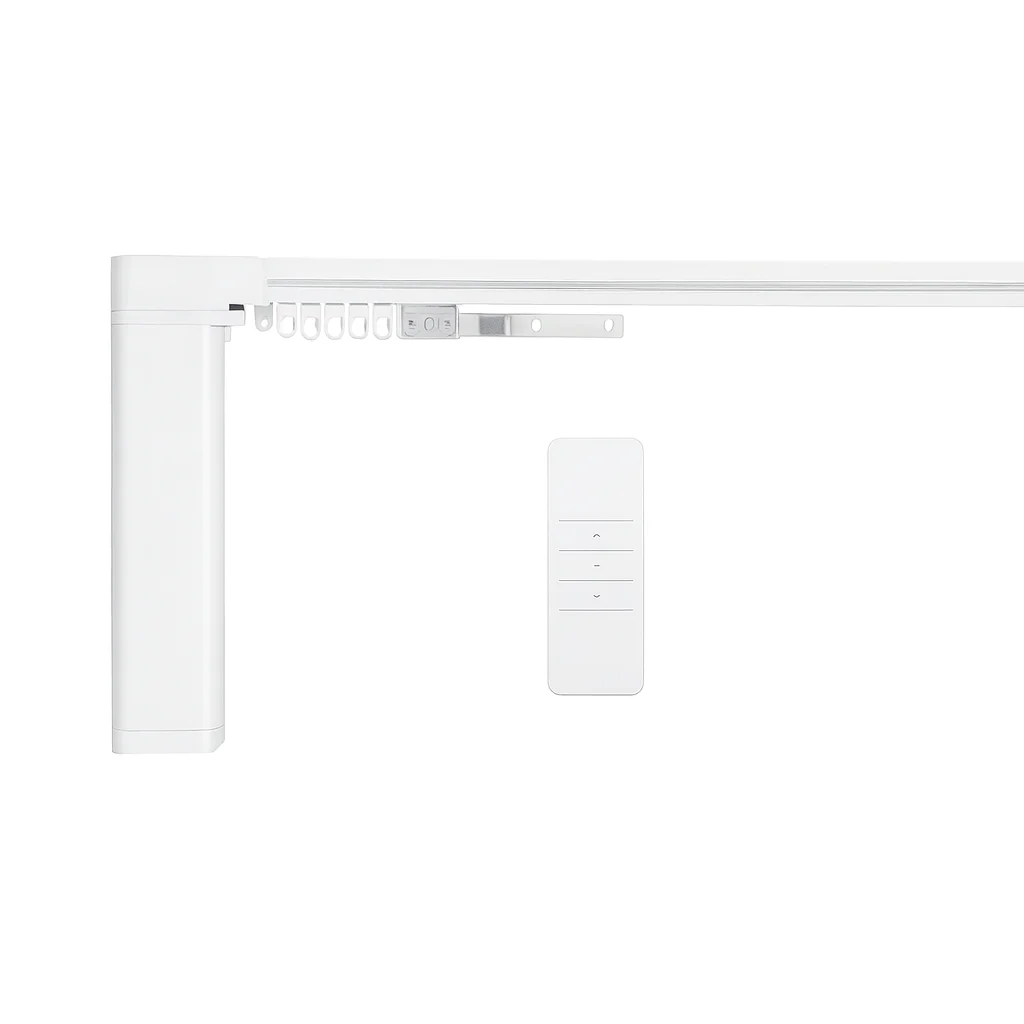

    Smart motorised curtain track set with remote control by Lemonho
    Smart silent motorised curtain track with app control – one button curtain control by Lemonho
    Silent motorised curtain track rail – electric curtain rail system by Lemonho

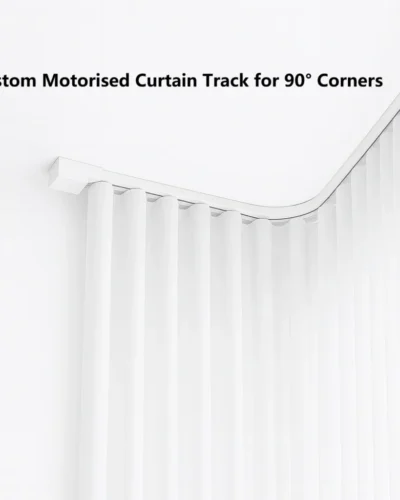

    Custom motorised curtain track for 90-degree corners with wave-fold curtains by Lemonho

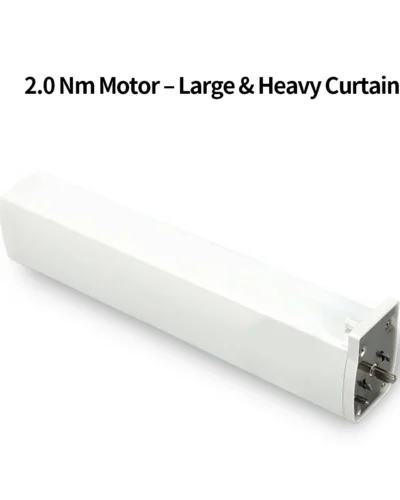

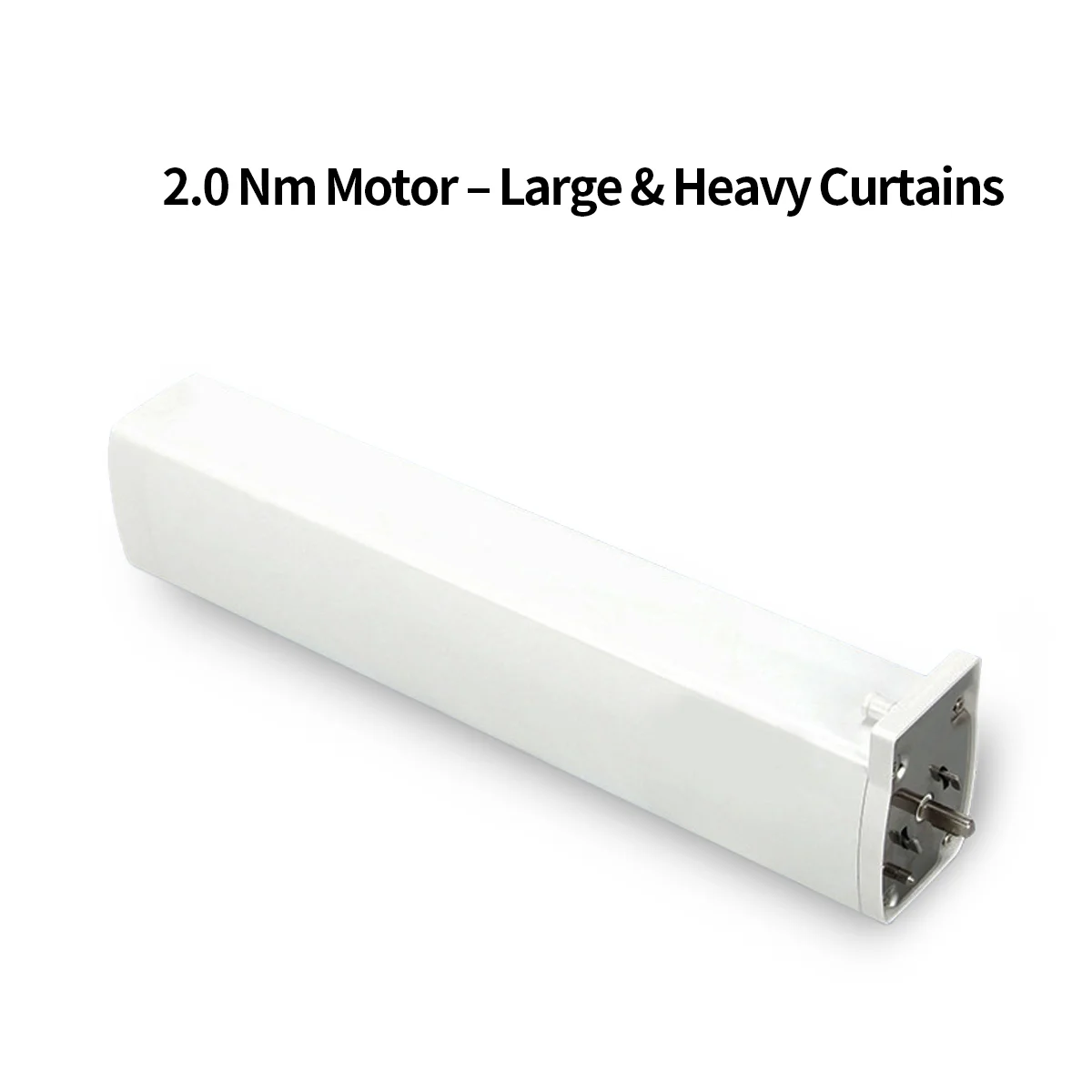

    2.0 Nm motor for silent motorised curtain track – large and heavy curtains by Lemonho

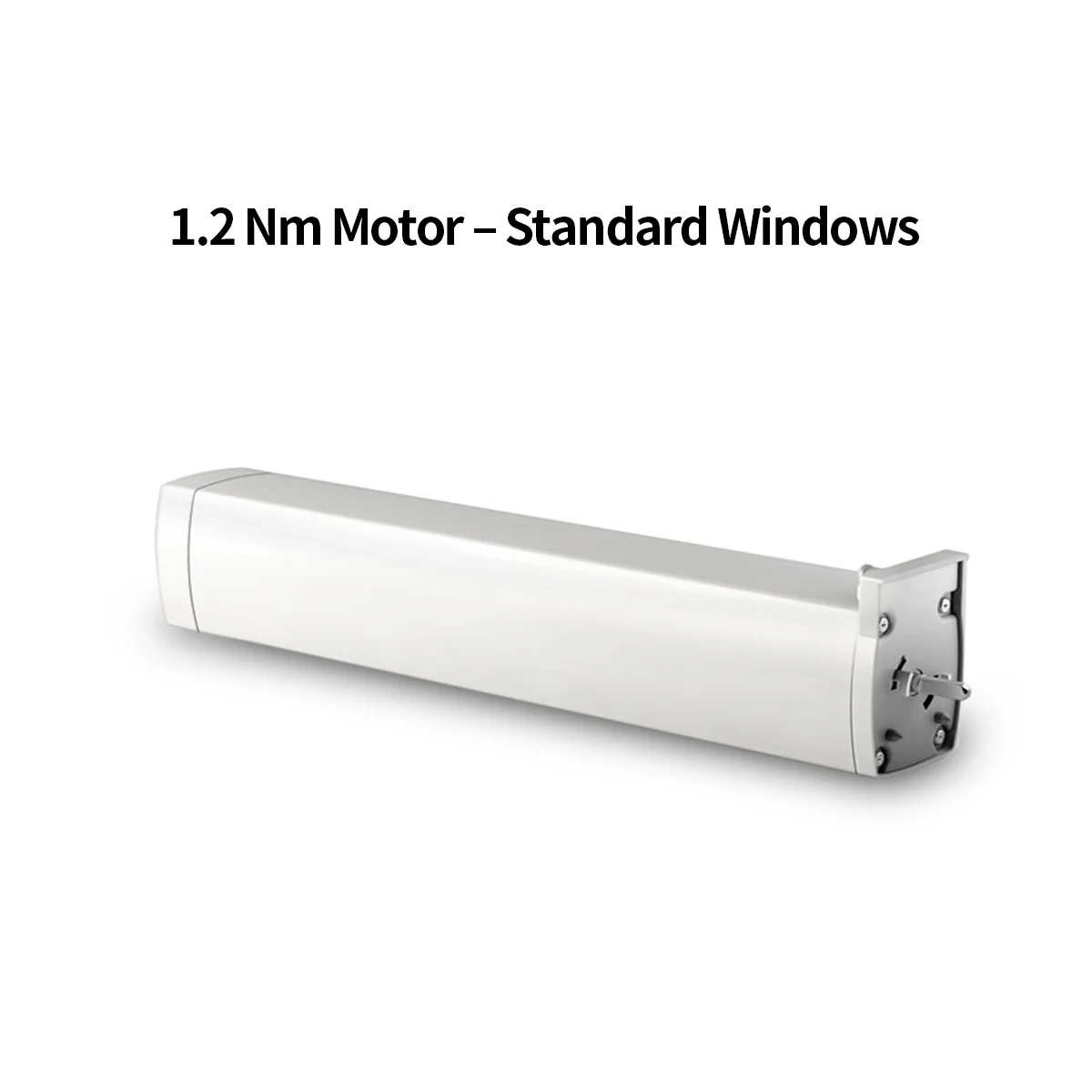

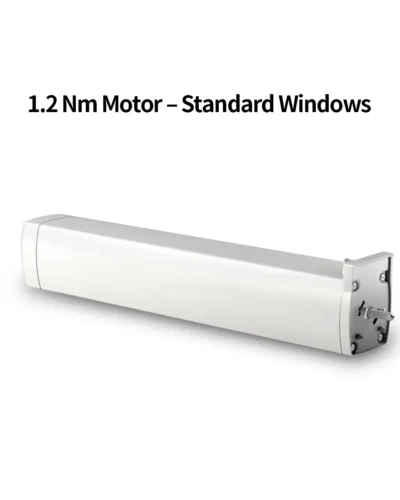

    1.2 Nm motor for silent motorised curtain track – standard windows by Lemonho

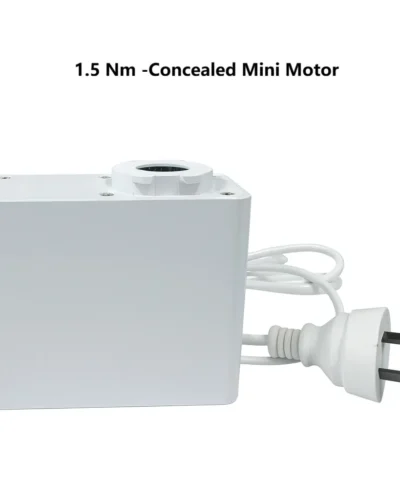

    1.5 Nm concealed mini curtain motor for smart motorised curtain tracks
    Smart Motorised Curtain Track – Remote Curtain Rail System - Image 8

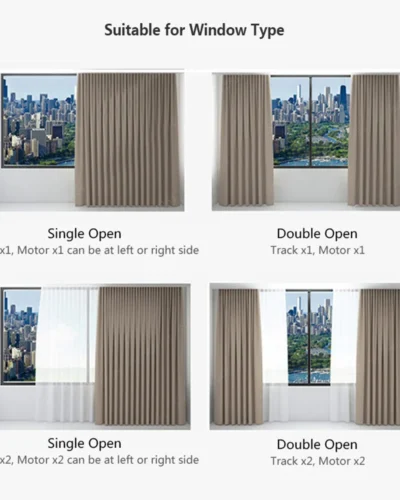

    Window types suitable for motorised curtain track – single, bay and corner windows by Lemonho

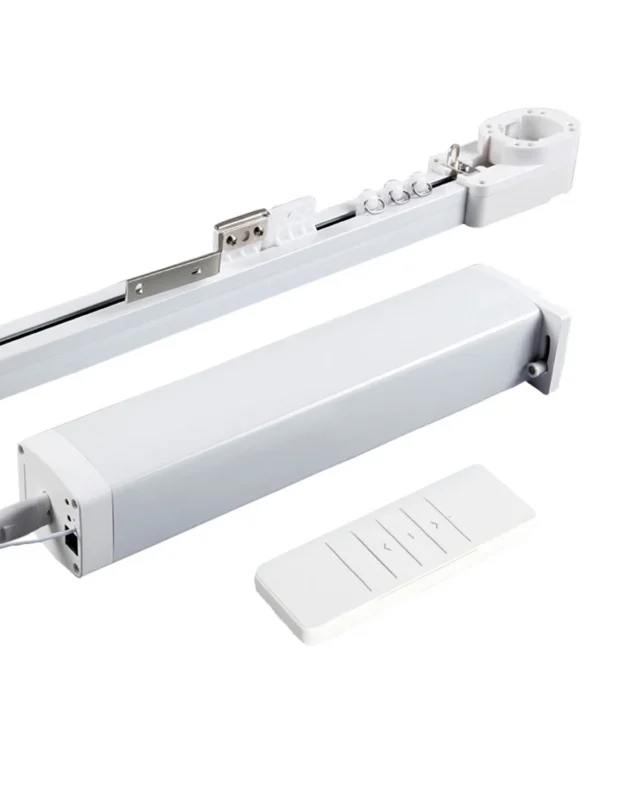

    Smart motorised curtain track set with remote control by Lemonho
    Smart silent motorised curtain track with app control – one button curtain control by Lemonho

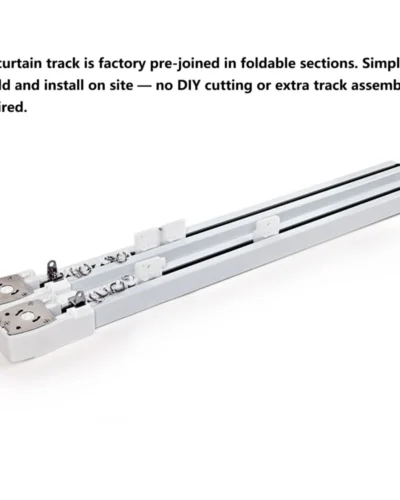

    Silent motorised curtain track rail – electric curtain rail system by Lemonho

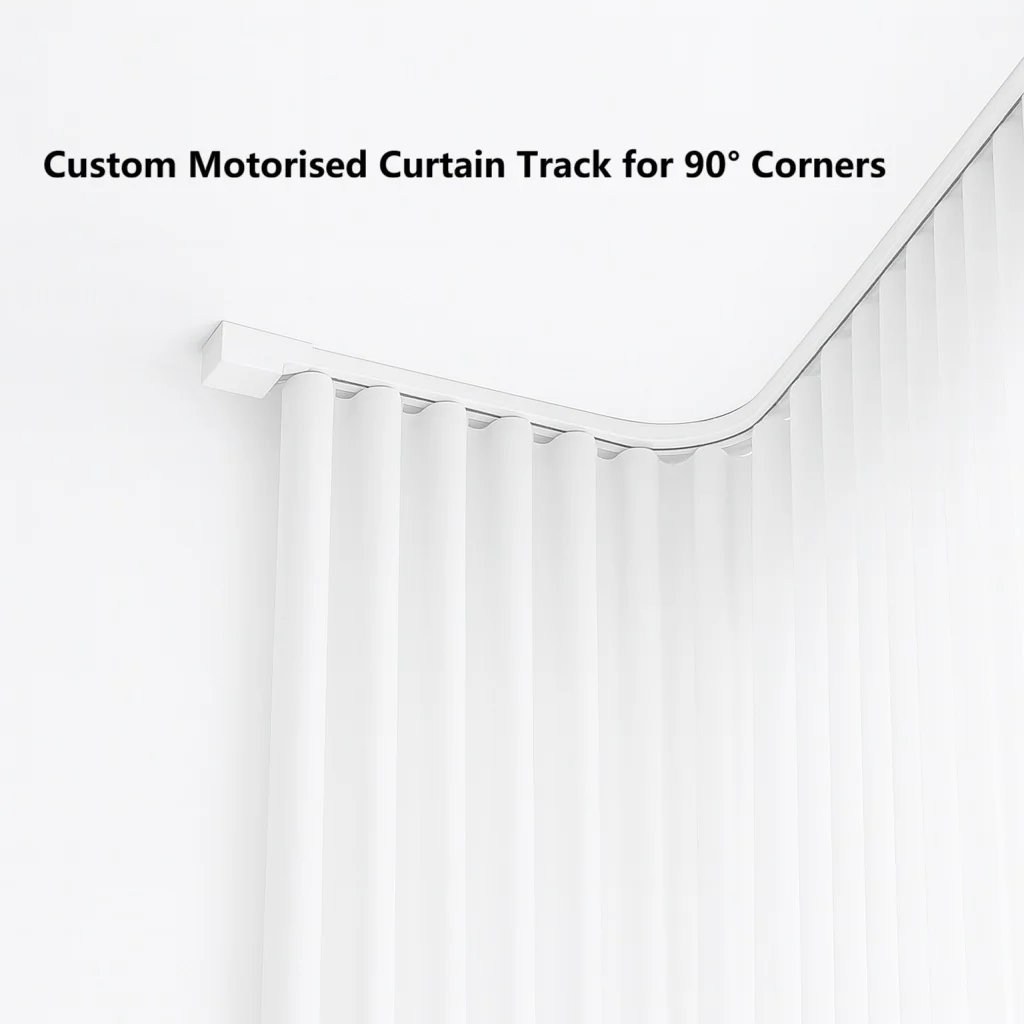

    Custom motorised curtain track for 90-degree corners with wave-fold curtains by Lemonho
    2.0 Nm motor for silent motorised curtain track – large and heavy curtains by Lemonho
    1.2 Nm motor for silent motorised curtain track – standard windows by Lemonho

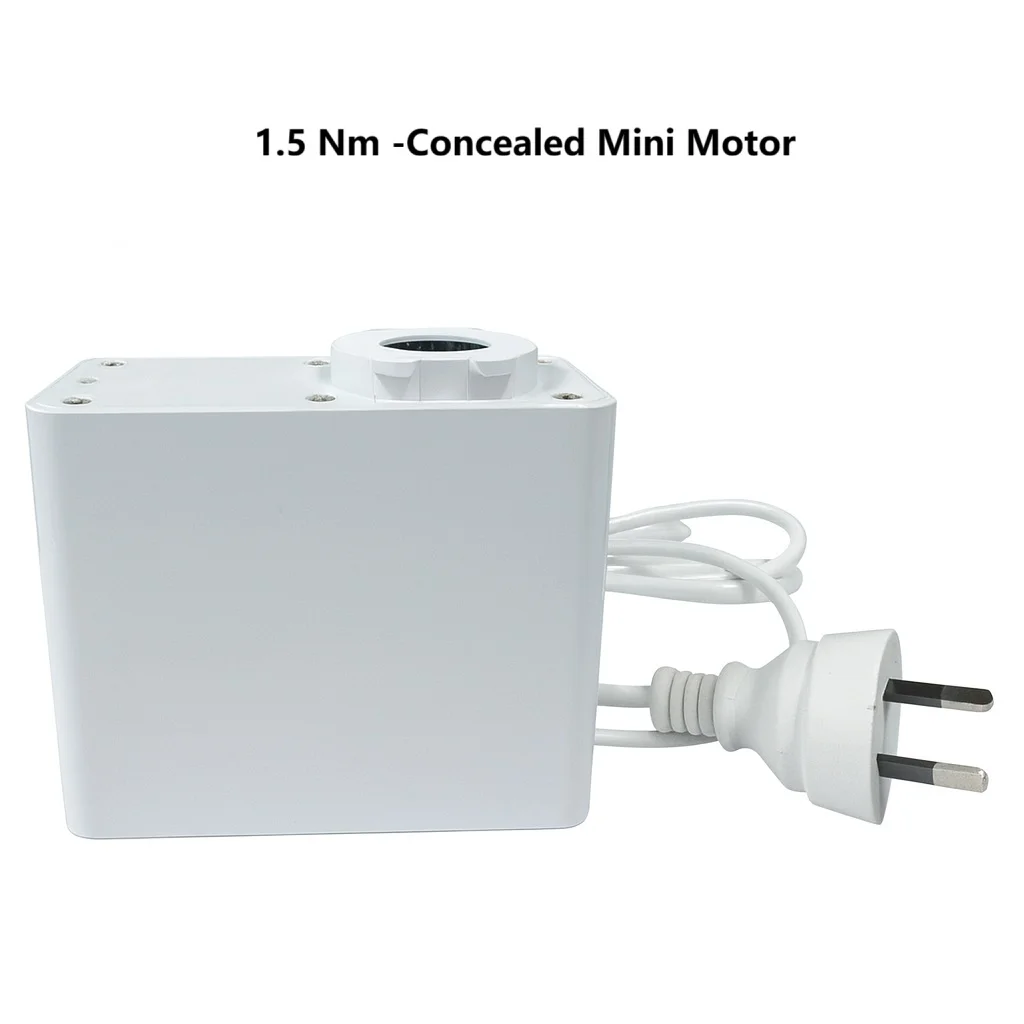

    1.5 Nm concealed mini curtain motor for smart motorised curtain tracks

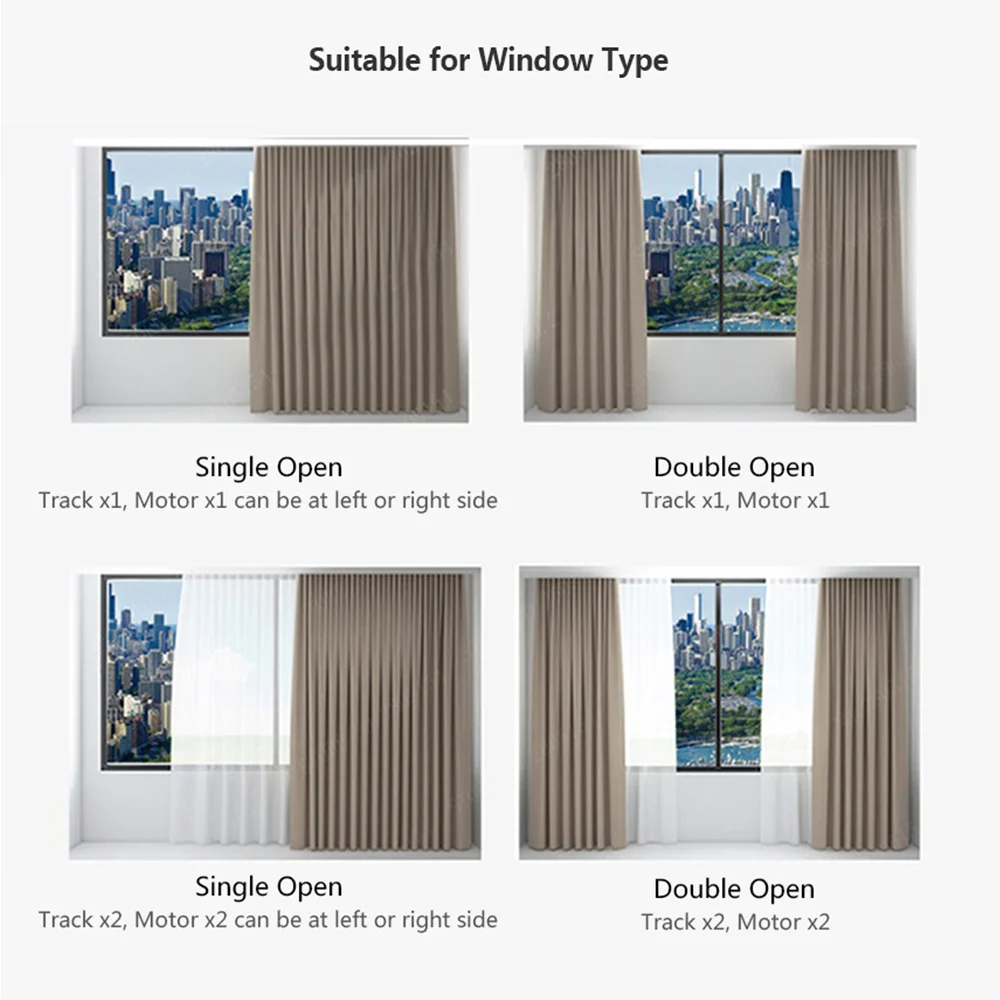

    Window types suitable for motorised curtain track – single, bay and corner windows by Lemonho

    Smart Motorised Curtain Track – Remote Curtain Rail System

    0 reviews
    1
    0%
    2
    0%
    3
    0%
    4
    0%
    5
    0%

    USD 183.90 USD 193.90Price range: USD 183.90 through USD 193.90

    Tip: For straight tracks, subtract 0.04 m (4 cm) from your measurement for the finished length. For L- or U-shaped tracks, use the full measured total length with no deduction.

    Only for L- or U-shaped tracks. Enter the finished length of side AB in metres (m).

    Only required for L or U shaped tracks. Enter the finished length of side CD in centimetres.

    For U-shaped tracks only. Enter the finished length of side FG in metres (m).

    For L- or U-shaped tracks. Enter the curtain box width (E) in metres (m), or leave this field blank if there is no curtain box.

    Add to wishlist
    SKU: N/A Categories: , Brand:

    Lemonho Smart Motorised Curtain Track

    The Lemonho smart motorised curtain track is designed for both residential and project use, providing smooth electric curtain operation with remote and smart-home control. The track supports 90° corners and can be custom-made as L-shaped or U-shaped curved tracks, with precise cutting and factory bending according to your window measurements. On-site installation only requires simple joint connection, with no DIY cutting needed, allowing for fast and efficient installation. This makes it an ideal choice for interior designers, renovation companies and curtain shops in Australia.

    Multiple control options

    Each track comes with an RF remote and is compatible with Zigbee-based smart systems, enabling remote control and scene automation. For app or voice control, please pair it with a compatible Zigbee gateway. Before final installation, we recommend testing the fully assembled track on a flat surface to ensure it runs smoothly.

    Measurement guide

    For detailed measuring instructions, please refer to the FAQ & Measuring Guide section further down this page.

    Bulk orders / project orders

    If you have multiple windows or a project order, please use our inquiry form or contact our team. We will combine all items into one project quote and provide a single payment link, so you don’t need to place and pay for each order separately.

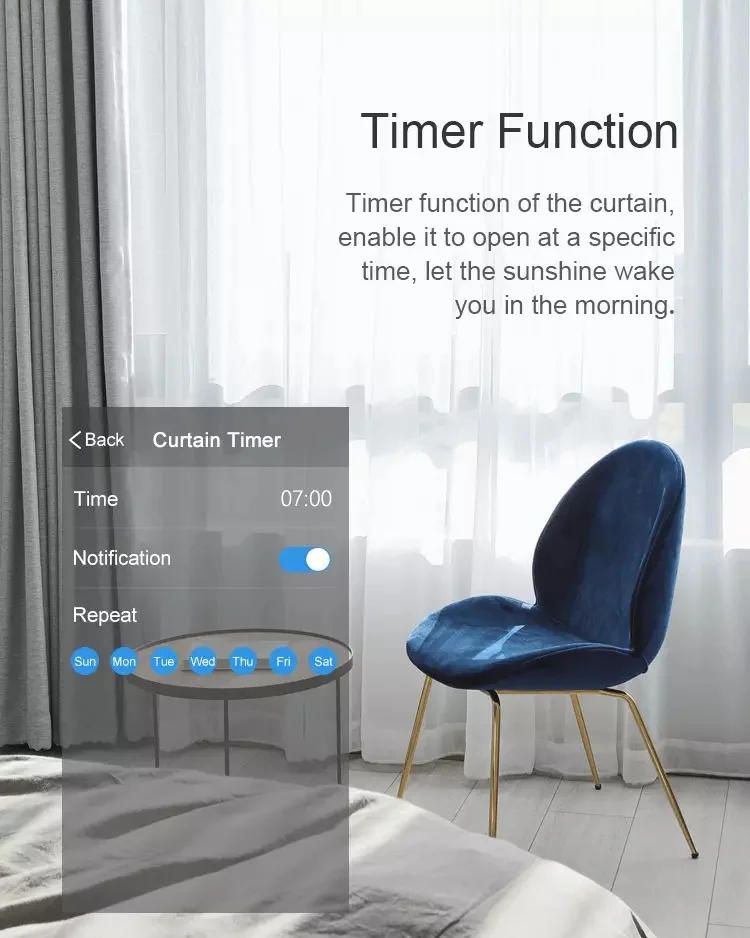

    Timer & Schedule Function

    Make your smart motorised curtain track part of your daily routine with easy timer and schedule control.

    Set your smart motorised curtain track to open and close automatically on a schedule that fits your day:

    • Wake up to gentle morning light as the track opens in the morning

    • Keep your living room bright during the day without touching the curtains

    • Close the curtains at night for privacy and a cosy atmosphere

    When connected to a compatible Zigbee gateway, you can create weekly schedules and scenes in the smart app, so your smart motorised curtain track runs on autopilot even when you’re away.

    FAQ & Measuring Guide

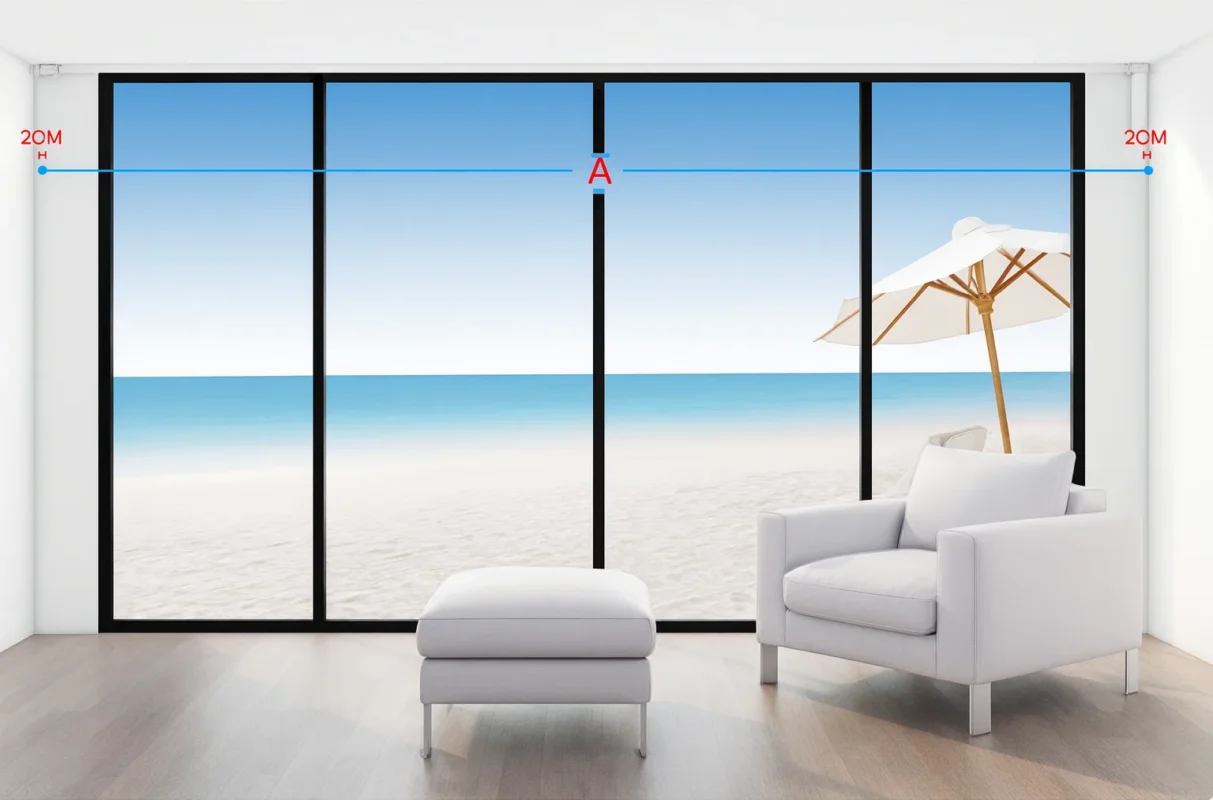

    Illustration showing how to measure the finished width for a motorised curtain track across a large window.

    Full-wall track:

    Measure the clear full-wall width A where the track will be installed, then subtract 4 cm from this measurement (leaving about 2 cm clearance on each side). The reduced value is the recommended finished track length – in the “Please select the finished track length (m)” dropdown, choose the option that is equal to or closest to this reduced value.

    Full-wall width measurement (A) for a smart motorised curtain track across large sliding glass doors.

    Non full-wall track:

    Measure the clear window-frame width A, then add about 40 cm on each side. The recommended finished track length is approximately A + 40 cm + 40 cm. If your wall space is limited, you can reduce the side extensions as needed. In the “Please select the finished track length (m)” dropdown, choose the option that is equal to or closest to this calculated length.

    3D corner window with a beach view showing how to measure the top width from A–B–C for an L-shaped curtain track.

    L-shape Surface-Mounted Track Measurement

    Measure the total track length
    Follow the wall layout and measure the two sides of the L-shape separately:

    • Measure the A–B segment (in meters);

    • Measure the C–D segment (in meters).

    Add A–B + C–D together, and select this total length in the product option
    “Please select the finished track length (m)”.

    1. Select the track type
      In the product option “Track type”, please select:
      “L-shape – 90° track”.

    2. Fill in each segment length
      In the corresponding input fields on the product page, please enter:

      • AB segment (m): enter the actual measured length from A to B (in meters);

      • CD segment (m): enter the actual measured length from C to D (in meters).

    3. Important note
      Please enter the actual measured values for AB and CD only.
      Our factory will handle:

      • the 90° bending,

      • track joining, and

      • any allowance and reduction needed for installation.

      You do not need to subtract any length yourself.

    U-shape Surface-Mounted Track Measurement

    1. Measure the total track length
      Follow the wall layout diagram and measure the three sides of the U-shape separately (in meters):

      • Measure the A–B segment;

      • Measure the C–D segment;

      • Measure the F–G segment.

      Add A–B + C–D + F–G together, and select this total length in the product option
      “Please select the finished track length (m)”.

    2. Select the track type
      In the product option “Track type”, please select:
      “U-shape – 90° track”.

    3. Fill in each segment length
      In the corresponding input fields on the product page, please enter:

      • AB segment (m): enter the actual measured length from A to B (in meters);

      • CD segment (m): enter the actual measured length from C to D (in meters);

      • FG segment (m): enter the actual measured length from F to G (in meters).

    4. Important note
      Please enter the actual measured values for A–B, C–D, and F–G only.
      Our factory will handle:

      • the 90° bending,

      • track joining, and

      • any allowance and reduction needed for installation.

      You do not need to subtract any length yourself.

    L-shape 90° Track (Inside Curtain Box)

    1. Select the track type
      In the product options under “Track type”, please select:
      “L-shape – 90° track”.

    2. Measure the track lengths inside the curtain box
      Based on the measurement diagram, measure the following (in meters):

      • A–B: along the inside of the curtain box, from the inner corner to the end of the vertical side.

      • C–D: along the inside of the curtain box, from the inner corner to the end of the horizontal side.

      • E: the curtain box depth (distance from the inner wall to the front edge of the curtain box).

      Add A–B + C–D together, and select this total length in the product option
      “Please select the finished track length (m)”.

    3. Fill in each segment length
      In the corresponding input fields on the product page, please enter:

      • AB segment (m): enter the actual measured length from A to B (in meters);

      • CD segment (m): enter the actual measured length from C to D (in meters);

      • E (curtain box depth, m): enter the actual measured depth of the curtain box.

    4. Important note
      Please enter the actual measured values for A–B, C–D and E only.
      For L-shaped tracks installed inside a curtain box, our factory will handle:

      • the 90° bending,

      • track joining, and

      • all necessary clearance deductions and allowances for installation.

      You do not need to subtract any length yourself.

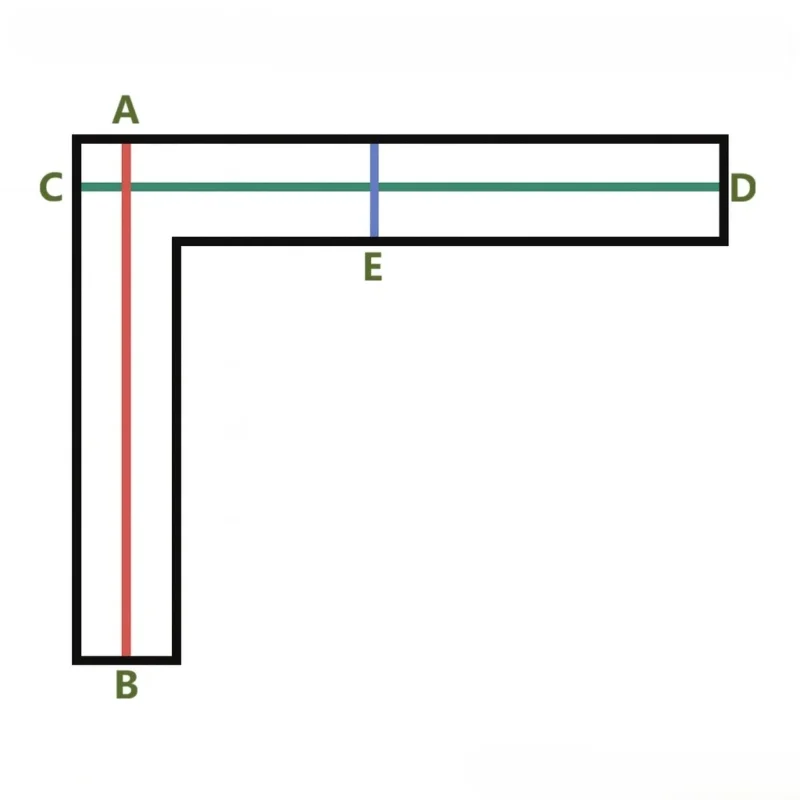

    Diagram of an L-shaped curtain track showing how to measure AB, CD and E for both sides and the curtain box width.

    U-shape 90° Track (Inside Curtain Box)

    1. Select the track type
      In the product options under “Track type”, select:
      “U-shape – 90° track”.

    2. Measure inside the curtain box
      Based on the measurement diagram, please measure the following (in meters):

      • AB: Measure the length of the left side (A–B) inside the curtain box, from the top inner corner down to the bottom.

      • CD: Measure the top inside width (C–D) of the curtain box, from the left inner side to the right inner side.

      • FG: Measure the length of the right side (F–G) inside the curtain box, from the top inner corner down to the bottom.

      • E: Measure the curtain box depth (E) – the distance from the inner wall to the front edge of the curtain box.

    Add A–B + C–D + F–G together, and select this total length in the product option “Please select the finished track length (m)”.

    1. Enter your measurements
      On the product page, please enter the actual measured values for:
      AB, CD, FG and E.

    2. Important note
      For U-shaped tracks installed inside a curtain box, our factory will handle:

      • all necessary clearance deductions, and

      • installation allowances

      based on your measurements.
      You do not need to subtract any length yourself.

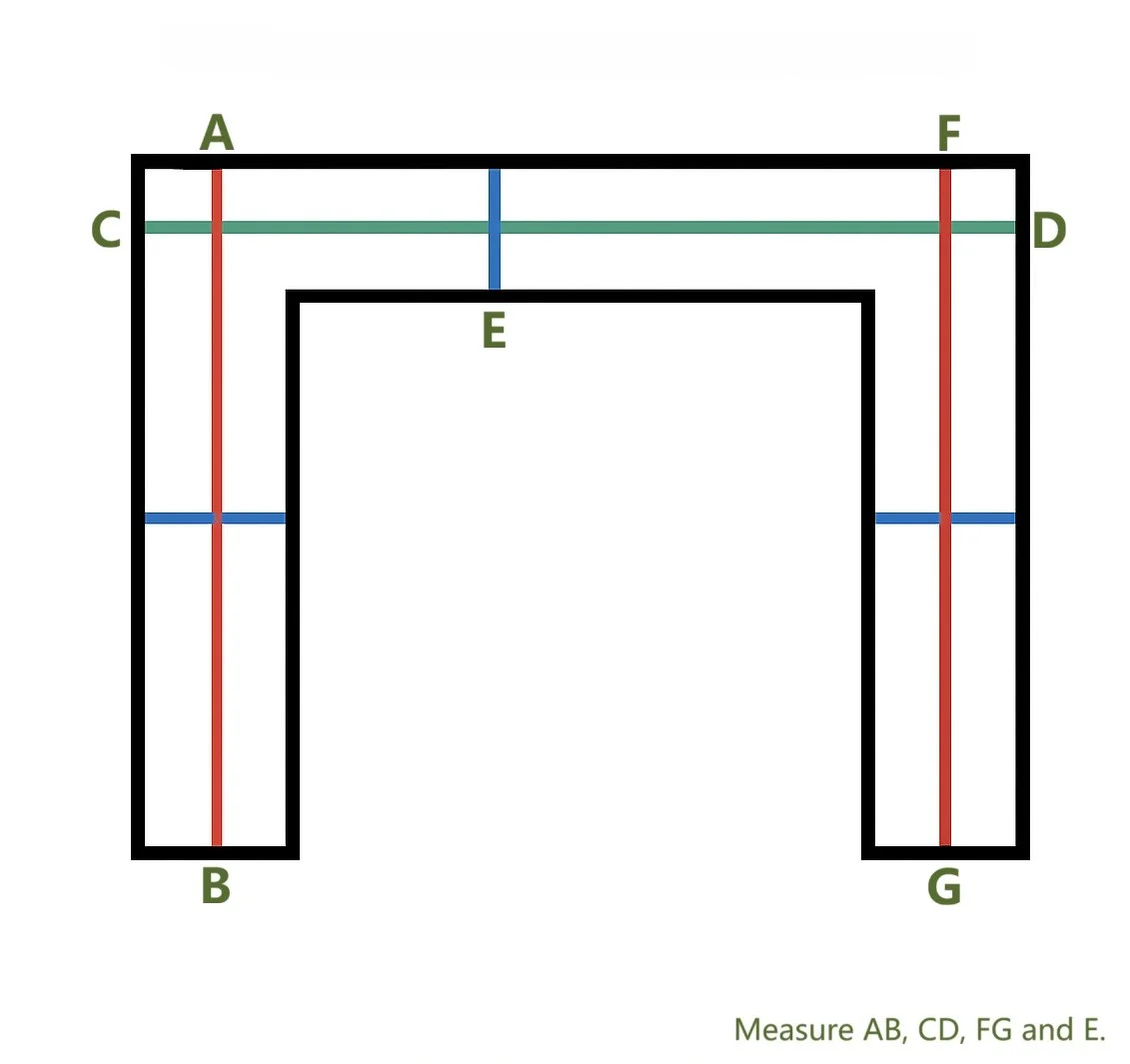

    Diagram of a U-shaped curtain track showing how to measure all three sides and the curtain box width for a custom track.
    Inside clearance of at least 10 cm required above the single-track motorised curtain.

    Single-track straight motorised curtain
    Please allow at least 10 cm of inside width for the curtain.

    Minimum 18 cm inside clearance required for a double-track motorised curtain system.

    Double-track straight motorised curtain
     leave at least 18 cm of inside width for the curtain.

    90° curved motorised curtain track with a red dimension line showing a minimum 15 cm inside clearance at the corner.

    Single-track L- or U-shaped motorised curtain
    Leave at least 15 cm of inside width for the curtain track.

    90° double-track motorised curtain with a red dimension line showing a minimum 25 cm inside clearance at the corner.

    Double-track L- or U-shaped motorised curtain
    Leave at least 25 cm of inside width for the curtain track.

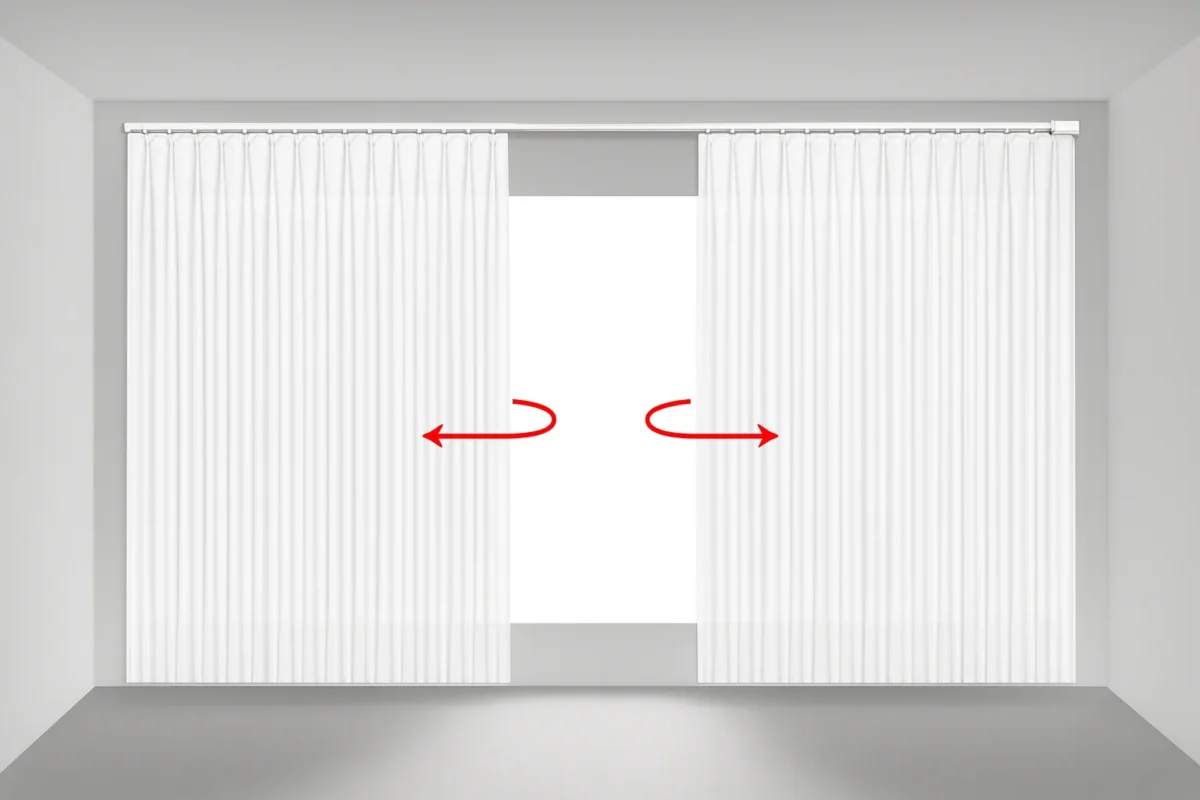

    Two-way center open curtains, opening from the middle to both sides – measurement diagram

    Split draw (centre opening)

    The curtains open from the centre and stack on both sides.

    One-way draw curtain stacked on the left side, opening to the right – measurement diagram

    Single draw (one-way opening)

    The curtain opens towards one side and stacks on that side only.

    Close-up 3D view of a white curtain track installed inside a ceiling curtain box, looking up from below.

    Top fix (ceiling mount)

    Track fixed to the ceiling or the top of the window recess / inside a curtain box.

    3D view of a white ceiling-mounted curtain track at a window corner, seen from below.

    Face fit (wall mount)

    Track fixed to the wall above or around the window opening.

    Serene Weave Curtain – minimal textured drapes framing a bright window by Lemonho
    Add to wishlist

    Curtain Styles

    Serene Weave Curtain – Modern Textured Drapes

    USD 93.61
    Leafshadow Jacquard Curtain with botanical texture by Lemonho, framing a calm reading corner with books and a tassel tieback
    Add to wishlist

    Curtain Styles

    Leafshadow Jacquard Curtain – Botanical Texture

    USD 108.87
    Rope-embroidered floral sheer curtain in ivory, softly filtering daylight.
    Add to wishlist

    Curtain Colors

    Rope-Embroidered Floral Sheer Curtain

    USD 62.98
    Botanic Veil Curtain – Jacquard Sheer Panel for Soft Light Filtering
    Add to wishlist

    Curtain Styles

    Botanic Veil Curtain

    USD 95.43
    Echo Leaf Curtain – Layered Jacquard Voile
    Add to wishlist

    Curtain Colors

    Echo Leaf Curtain

    USD 95.43
    Zen bamboo sheer curtain with jacquard texture
    Add to wishlist

    Curtain Colors

    zen bamboo sheer curtain

    USD 85.27
    Botanical jacquard sheer curtain gently draped by a window with a woven chair nearby
    Add to wishlist

    Curtain Styles

    Botanical Jacquard Sheer

    USD 85.27
    Cloud Veil Curtain in Soft Morning Light – Chenille Sheer for Cozy Interiors
    Add to wishlist

    Curtain Colors

    Cloud Veil Curtain

    USD 95.43
    Weight 1.5 kg
    KEY SPECIFICATIONS:

    Rated torque: 1.2 Nm / 1.5 Nm (recommended for straight tracks up to approx. 4.5 m / 6 m wide and around 3 m high), 2.0 Nm (for curved tracks, taller windows, or straight tracks up to approx. 10 m with heavy curtains)

    Input voltage: AC 100–250 V

    Rated power: 45 W / 75 W

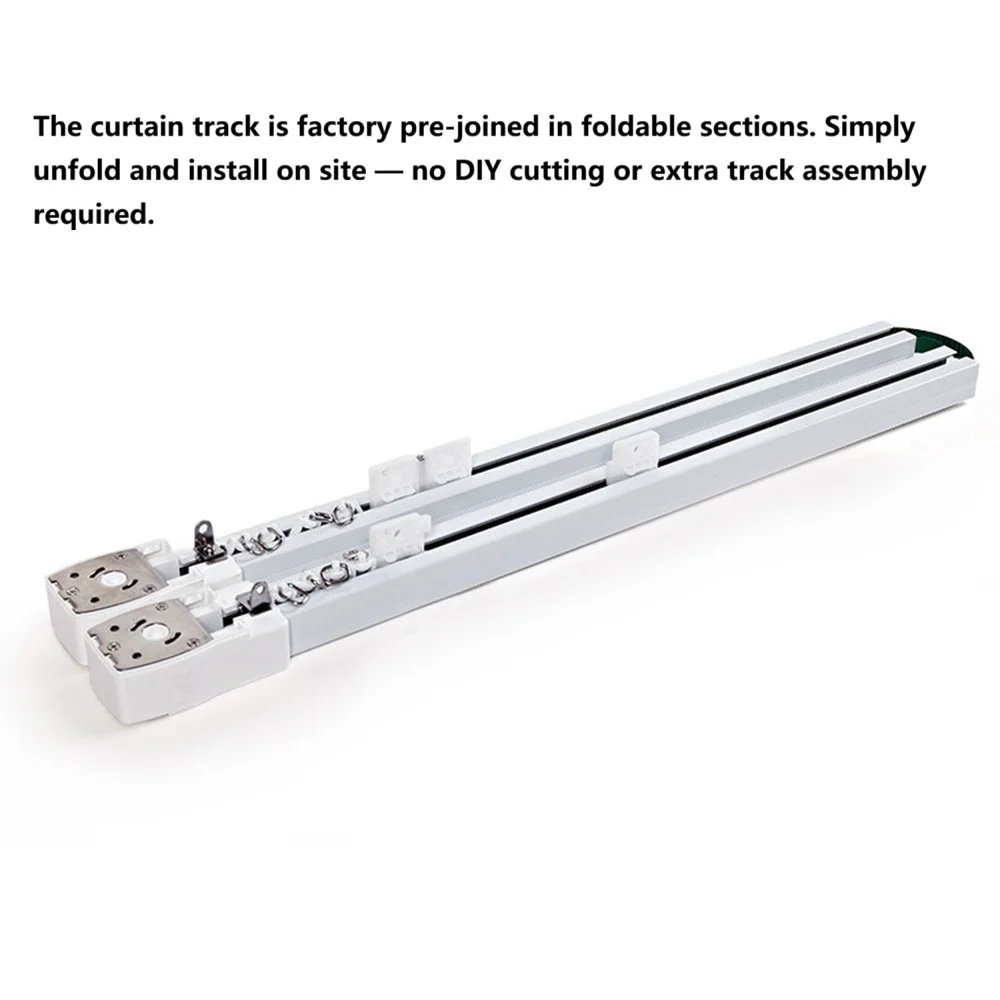

    Track material: Aluminium alloy, custom-cut and factory-bent to your window size

    Mounting options: Ceiling mount (top fix) / wall mount (face fit)

    Opening style: Single draw or centre open

    Control options: Handheld remote control included as standard; the motor can be integrated into Zigbee smart-home systems via a compatible Zigbee gateway
    WEIGHT REFERENCE (2-M TRACK SET):

    For a 2 m track, the complete set weighs approximately 2.6 kg in total, including: motor (about 0.7 kg), remote and accessories (about 0.5 kg), and track at 0.7 kg per metre (approximately 1.4 kg for 2 metres).
    MATERIAL:

    Powder-coated aluminium alloy curtain track with durable plastic runners
    ABS plastic
    MOTOR HOUSING:

    ABS plastic
    WARRANTY:

    1-year limited warranty on motor, track and remote for normal residential use. Installation labour is not included.
    IMPORTANT NOTICE:

    Please make sure the track length you select under “Please select the finished track length (m)” matches your actual window measurements.
    For L- and U-shaped tracks, we only use your segment measurements (AB / CD / FG / E) for factory bending. If the length selected in “Please select the finished track length (m)” is significantly different from the segment values, we may not be able to produce the track as requested and your order may be delayed.
    DISCLAIMER:

    As this motorised curtain track system is custom-made to your measurements, returns and exchanges are not accepted unless there is a confirmed manufacturing defect or significant quality issue. Installation is carried out by the customer or their installer and is not part of our service, so issues caused by incorrect installation or on-site conditions are not covered. For detailed terms, please refer to our Return & Refund Policy.
